Combine simplicity, reliability and highest fire safety for a complete façade system.
In a construction sector subject to increasingly stringent fire protection requirements, the need for high-performance, easy-to-implement solutions is constantly growing.
VM Building Solutions presents VM FIRE BARRIER PLUS – an innovative fire barrier membrane, specially developed for non-vented warm façades with ZINC PLUS from VMZINC.
It forms a reliable barrier that protects the insulation and contributes to a compliant and safe façade.

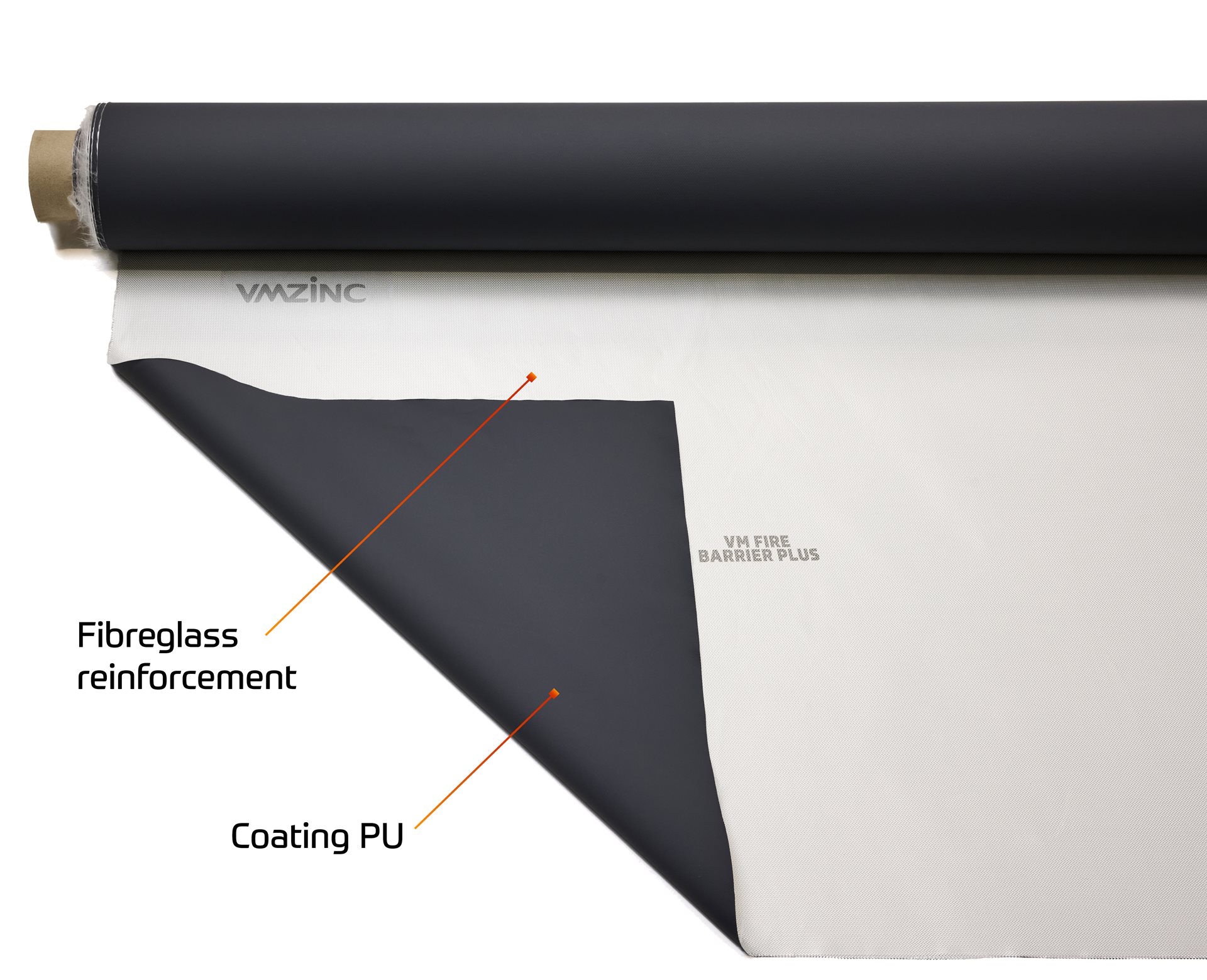

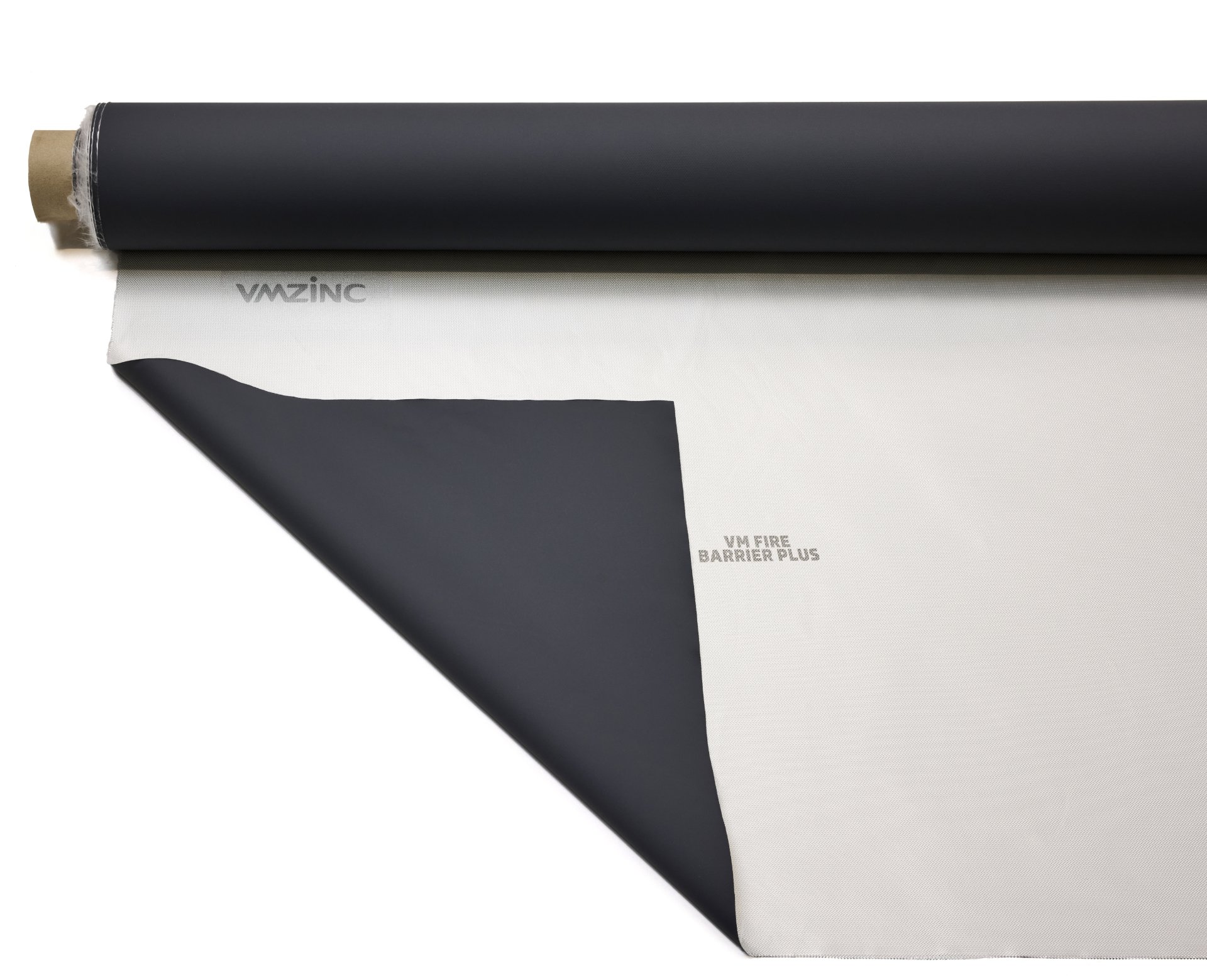

VM FIRE BARRIER PLUS
New fire barrier membrane for non-vented warm facades.
> Quick and easy to install
> Economical facade solution
> Classified: A2-s1,d0
> SBI Tested fire protection performance: B-s2,d0
> Watertightness – classe W1
> Suitable for low and medium-rise buildings
Description
| Thickness | 0,5 mm ± 15 % |
| Format (width x length) | 1,5 m x 25 m ± 2 % |
| Weight | 17.6 kg/rol - 470 g/m² (± 10 %) |
| Surface | 37,5 m²/rol (around. 35 m² useful) |
| Packaging | 20 rolls per parcel |
The ideal addition for ZINC PLUS
VM FIRE BARRIER PLUS was designed as the perfect complement to ZINC PLUS, the rolled zinc with a protective coating that prevents corrosion when in contact with insulation.
Thanks to this combination, ZINC PLUS can be installed directly on the membrane, making a ventilated air gap unnecessary.
The result: a tested system that combines fire safety, simplicity and reliability.

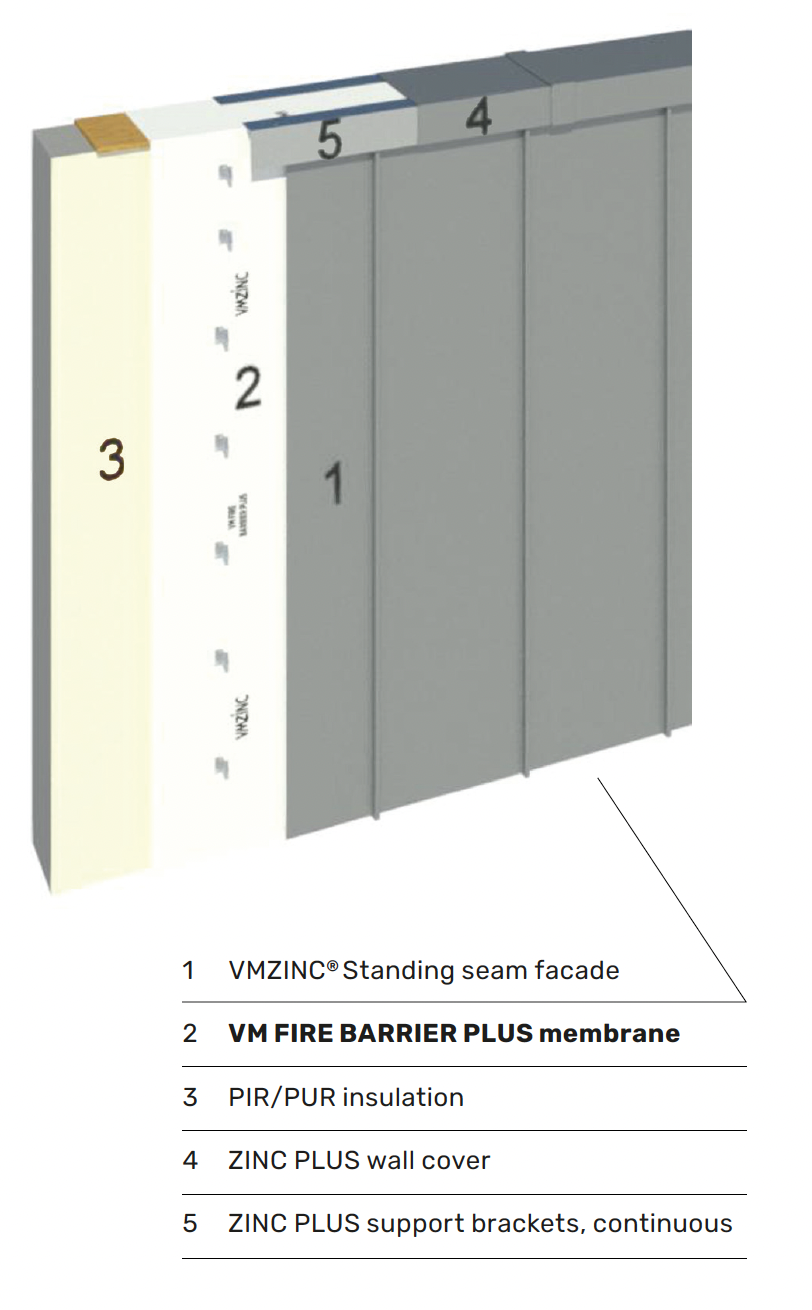

Non-vented facade with PIR/PUR insulation

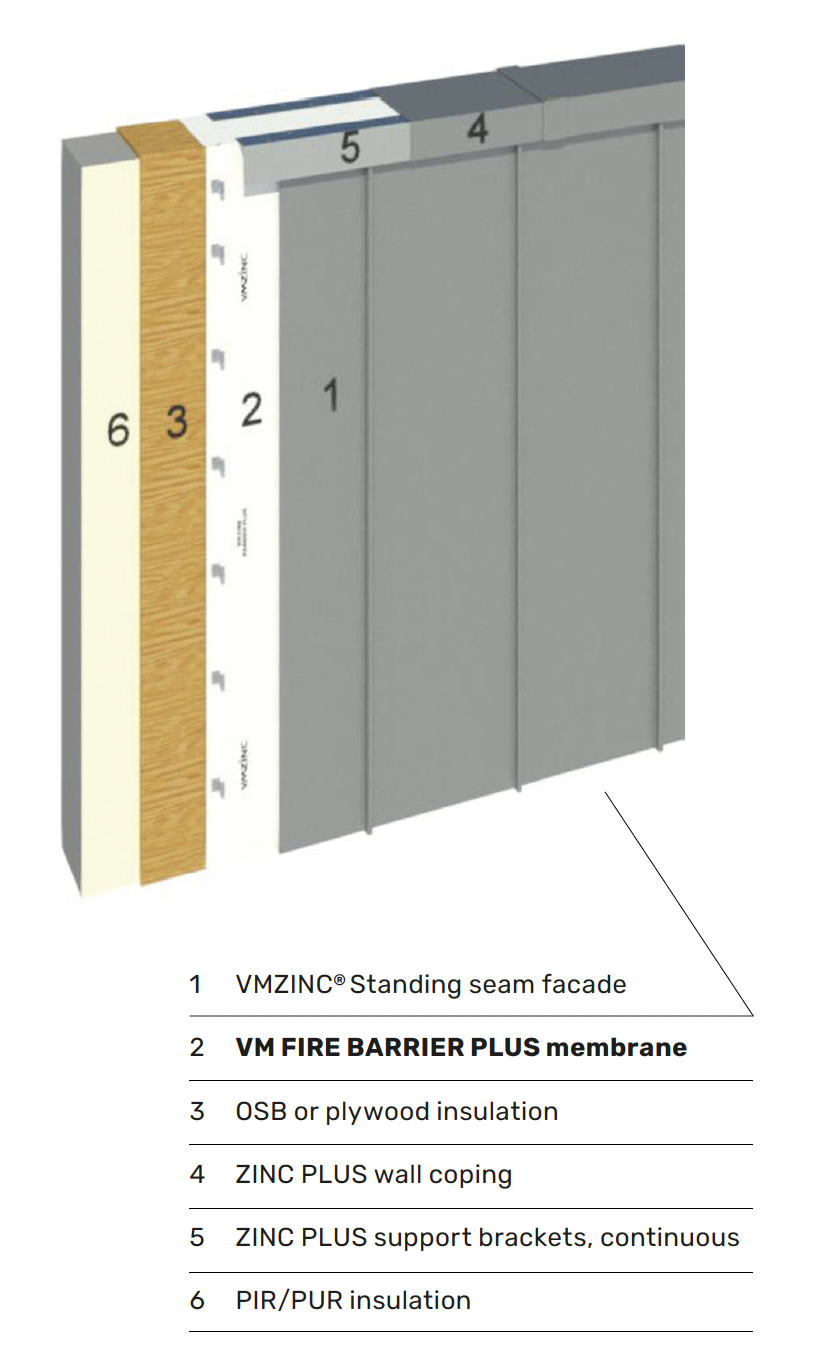

Non-vented facade with OSB or plywood
Please enter your E-mail address. We will send you the download link by mail.
Air-tight finish with VM FIRE BARRIER PLUS TAPE
VM FIRE BARRIER PLUS TAPE is a fire-resistant aluminium tape reinforced with fibreglass to complete the VM FARRIER BARRIER PLUS facade system. Thanks to its strong adhesive power, it ensures - in combination with the membrane - lasting airtightness of the overlaps.
